HD Outdoor P10 LED mobile truck screens
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lights
Model Number:
P10 led mobile truck screen
Usage:Outdoor
Tube Chip Color:
Full Color
Display Function:
video, animation, picture,
Pixels:10mm
Screen Dimension:
Customized Size
Pixel Pitch:10mm
Pixel Configuration:3IN1
Pixel Density:10000pixels/m2
Module size:320x160mm
Module Resolution:
32*16
Cabinet size:
960x960mm
Cabinet Resolution:
96*96
Gray scale:
65536
IP Grade:
IP65
Warranty:
2 Years
Packaging & Delivery
Packaging Details
wooden case or flight case
Delivery Time
10-15 working days after deposit
Product Description:
1. Our LED video display systems deliver crisp, high-contrast video to showcase products or messages for any application.
2. Provide the ability to change content quickly and dramatically. This product line includes full-color LED video screens in a variety of resolutions, sizes, and viewing angles.
3. From 2.35 mm to 48 mm, QC offers a wide variety of pitch and resolution options.
4. The QC panel design offers significant flexibility in size, curves, and custom corners.
5. Deliver messages with a high degree of clarity, acuity, and impact. With a wide range of input options and fully customized controls, the user can create a unique mix of programming.
6. QC's industry-leading contrast ratio and brightness features allow the content to stand out regardless of surrounding light conditions.
No. | Specifications | |
1. | Item No. | P10 led display |
2. | LED chip | Nationstar/Ruifrng/Epistar |
3. | Physical Pixel Pitch | 10mm |
4. | Physical Pixel Density | 10000dots/m2 |
5. | Pixel composition | 3IN1 |
6. | Moduel Size | 320*160mm |
7. | Moduel resolution | 32*16dots |
8. | Cabinet thickness | 15-18cm |
9. | Bracket of cabinet | Easy to install and dismantle |
10. | Brightness | ≥ 6500cd/m2 |
11. | Colors | 16.7million |
12. | Viewing angle | Horizontal 120°-140°, Vertical 90° |
13. | Viewing distance | 10m -100m |
14. | Soft Rubber Mask | To protect player and LED display itself . |
15. | Scan frequency | ≥1200 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked. Also it is very easy to move and connect |
16. | Video Frame Rate | ≥150 fps |
17. | Color temperature | 6500°K to 9500°K adjustable |
18. | Control method | synchronous control by PC |
19. | Life span( half brightness) | ≥100,000 hours |
20. | Weight | 50-65Kg/sqm |
21. | IP rate | IP65 ( front side and rear side) |
22. | Average power consumption | 725W/sqm |
23. | Peak power consumption | 900W/sqm |
24. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
25. | Operating Environment | Temperature:-20 - +60 Humidity:10%-95%RH |
26. | Operating system | Windows 98/2000/ME/XP |
27. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
Application:

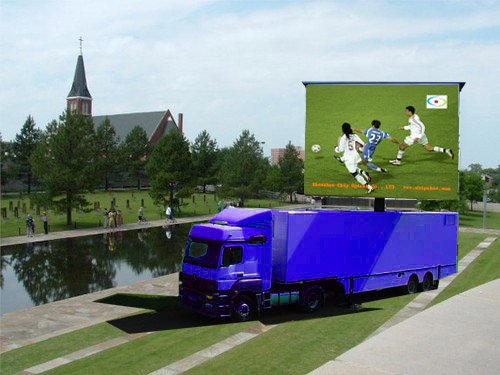

Car LED display breakthrough the limitations of traditional media, get rid of the problems of the install background, to expand the function of LED display, mobile and convenient, timely release of information, multimedia compatible, in line with the development requirements of the advertising industry, stage performance,outdoor event etc.
The flexibility to move the electric chassis, can lift the screen, ultra-thin design, easy to install easy to dismantle, use aluminum alloy box, greatly reducing the weight of car display, easy to light and flexible movement.
