Dancing P6 indoor Floor LED Screen/Curtain Display screen led billboard led panel led video wall led
Features:
1. Hot seller for indoor advertising & events rental display;
2. Extra perfect viewing and vivid images;
3. Most competitive price;
4. Good after-sale.
Specification of oem full color rgb led screen module p6
| No. | specs | Indoor full color PH6 |
| 1 | Pixel structure | 1R1G1B 3in1, 3528 |
| 2 | Pixel pitch | 6mm |
| 3 | Pixel density | 27777dots/Sq. m. |
| 4 | Luminance | 1500-2000cd/Sq. m. |
| 5 | Module dimension | 192mm(W) * 192mm(H) |
| 6 | Module resolution | 32 pixel(W) *32pixelmm(H) |
| 7 | Module weight | 310g |
| 8 | Cabinet dimension | 768 * 768mm or other |
| 9 | Cabinet area | 0.59 sq. meter or other |
| 10 | Screen weight | 40~60kg/m2 |
| 11 | Optimal visual distance | > 6m |
| 12 | Visual angel | 140 degree (H/V) |
| 13 | Max power consumption | 520w /Sq. m. |
| 14 | Average power consumption | 260w /Sq. m. |
| 15 | Brightness adjustment | Adjust according to the enviroment |
| brightness software (0%-100%adjustable) | ||
| 16 | Drive mode | 1/16 dynamic scan, constant current |
| 17 | Input voltage | AC 110~240 volts |
| 18 | Operation temperature | -40° C~ +60° C |
| 19 | Operation humidity | 10%~90% |
| 20 | Input signal | DVI, MPG, AVI, WMV, RM etc. |
| 21 | Control system | DVI card + master control card + receiver card |
| 22 | lifetime (50% brightness) | >100, 000 hrs |
| 23 | Malfunction dot rate | 1/10000 |
| 24 | Cabinet material | Epoxy paint coated Cold rolled steel iron/Aluminum |
| 25 | Data interconnection | UTP Cat 5/Optical Fiber |
| 26 | Application: | Rental / Permanent installation available |
High contrast ratio design
The mask designed by 5 years working experience team. High transparency mask can deliver the clear image and keep the rich color of dance floor led screen.
High quality, safe and reliable
Surface in 10mm transparent tempered glass, high strength ABS can bear 500 kg/sqm. It also features Anti-skid,impact resistance and abrasion resistance.

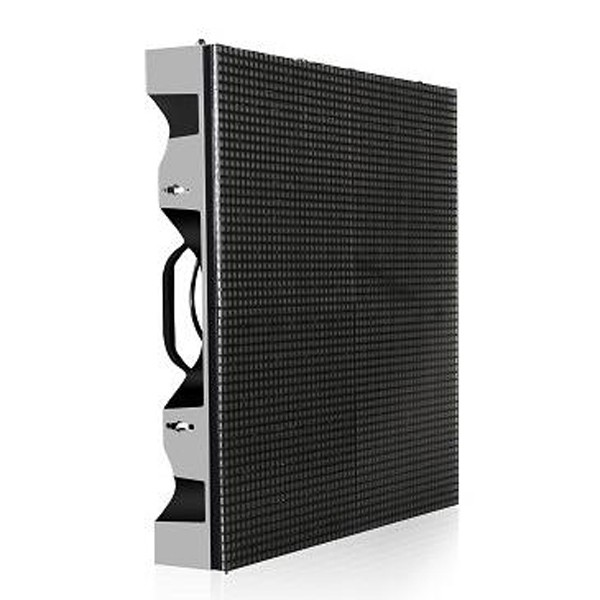

Standard Cabinet Dimensions
PH6 Indoor SMD Dance Floor LED Screen can be installed directly without and stools. It is very easy and fast.
High gray scale even in low brightness
High gray scale ensures good consistency even in low brightness. It can keep a very excellent gray scale performance even lower 20% brightness of entire screen.The brightness can automatic adjust according to the using environment.
Simple installation
DIY project, one staff can set up over 30 m²/ H. It is very easy to install, adjust, assemble and disassemble. Save the labor and time cost.
Factory real shot
Focus in every single detail of product. Keep improving the quality.
Application
KTV, bar corridor, T stage, dance stage, shopping corridor, production conference, huge party, concert, outdoor plaza, etc.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality Best Indoor Advertising.
