Product Description
1) high quality Epistar leds to keep high quality,low lighting decay,energy saving.

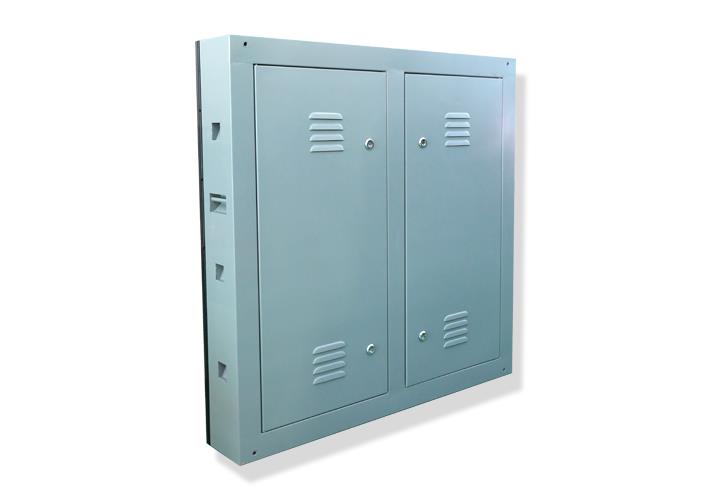

2) Slim cabinet light cabinet, easy to move.
3) Die Cast Aluminum Cabinet, durable and won't deform.
4) Good waterproof IP65 for front, IP 54 for rear,longf life span>10000.
5) High brightness which is adjustable to sufficiently meet the needs of various.
6) Cabinet size and material can customized according different projects.
Items | P3 Indoor full color led display |
Pitch size | 3mm |
Module size | 192mm*192mm |
Panel pixel(dots) | 64*64 |
LED Lamp | Epistar |
Pixel configuration | 1R1G1B |
Cabinet size | 576mm*576mm |
Wavelength (dominant) | Red:623nm±1.5nm / Green:525nm±1.5nm / Blue:470nm±1.5nm |
Color scale | 256-65536grade/16777216colors |
Pixel density | 111111pixels/square meter |
View angle(H/V) | 120/60degree |
Brightness | ≥1200cd/sqm |
View distance | 2.5-150m |
Power consumption | 350-600W/sqm |
Net weight | 60kg/square meter |
Operating temperature | —25℃~+60℃ |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 2000Hz |
Control distance | 120m (without relay),single mode fiber: |
20000m,multi mode fiber:500m-20km | |
Power | 110V/220V/380V±15% 50Hz |
operating system | Windows98/Me/2000/Xp/windows7 |
Drive mode | constant current driving |
display mode | VGA640X480—VGA1600X1024 |
Protections for outdoor display | IP21 |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
