Features
1. LED Chip: Supplied by Nichia of Japan & Cree of USA & Epistar of Taiwan or other high strictly selected LED chip, assure high definition show effect.
2. Wide viewing angle 120/160°, perfect and impressive viewing effect.
3. Easy Installation: Beautiful standard cabinet or your required cabinet, with aviation plug&socket+handle+lock+side lock, easy to connect cabinets.
4. Seamless Splice: good flatness cabinet with side lock, can make the screen show imagine without splice.
5. High quality IC selection: MBI5024/5035/5036/5039/5042,MBI5153 JXI5020, TLC59283 or other types you require.
6. Famous power supply selection: Meanwell, E-energy, Greatwall etc., CE, UL certified.
7. Famous control system for optional: Synchronous: Nova, LINSN, Mooncell etc.; Aynchronous: Tianyi, Xixun or Betters etc.. They are stable, wide application, easy to operate, good refresh rate and grey scale, powerful functions to support your need.
8. Skillful and strict assembly workmanship, can assure you high quality guaranteed products.
9. All our products support 2 years warranty or more according to your requirements.
10. Immediate, patient and considerated service is our principle.
1 RGX P1.667 led display full color description:
Unit Module | Item: | RGX LED Parameter |
Model: | P1.667mm full color indoor led module | |
Pixel Pitch: | 1.667mm | |
Pixel configuration: | 1R1G1B 3in1 SMD | |
Module Size: | 200mm * 300mm | |
Module Resolution: | 120dots(W) * 180dots(H) | |
Module Thickness: | 14.75 mm | |
Module Weight: | 0.32 KG | |
LED type: | SMD1010 | |
Max Power: | 45W | |
Pixel Density: | 360000 dots / SQM | |
Driving Method: | Constant Current Driving | |
Scan Method: | 1/30 Scan | |
Interface Way: | HUB 75B | |
Brightness: | ≥ 1600CD /SQM | |
Unit Cabinet | Cabinet Size: | 400mm * 300mm |
Cabinet Composing: | 2 pcs | |
Power Supply Mode: | 5V/40A | |
Cabinet Resolution: | 240dots * 180dots | |
Optimal Viewing Distance: | 1.2-30M (according to the screen size) | |
Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 90 degree | |
Environment Temperature: | Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree | |
Relative Humidity: | 10% ~ 95% | |
Power | Operating Voltage: | AC:100V~120V AC:220~240V |
Average Power: | 100W/ SQM | |
Max Power Consumption: | ≤ 620W | |
Current: | ≤ 20mA (single LED) | |
Control System | Computer: | Pentium4 or above P4 or above |
Operate System: | Win98/2000/NT/XP | |
Control Mode: | Synchronization with PC | |
Main Technical Parameter | Driving Device: | IC Constant Current Driving (RGX) |
Refresh Rate: | ≥ 2000Hz | |
Gray/Color: | RGB each 256 grade, can display 16.7color | |
MTPF: | ≥ 10000hours | |
Power Switch: | Automatic Switch (RGX) | |
Display Mode: | 800*600\1024*768\1280*960\2048*1024\3840*2048 |

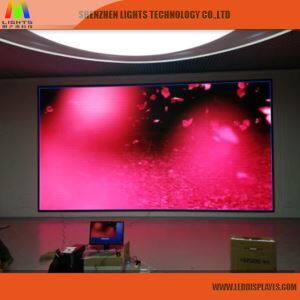

P1.667 Indoor LED Video Advertising Panel Display Electronic Screens Digital Signs China

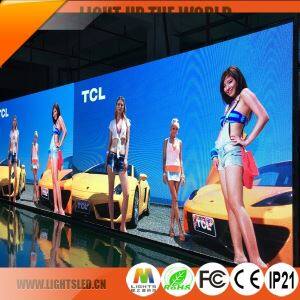

P1.89 LED Video Message Display Indoor Full Color LED Wall Panel Screen Business Board Signs
