High quality Big screen P6 indoor led display
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lights
Model Number:
p6
Usage:
Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Screen Dimension:
Customized
Pixel Pitch:
6 mm
Module size:
192*192mm
Module thickness:
13mm
Scan mode:
1/16 Scan
LED package mode:
SMD3528
Pixels density:
27777dot/M2
Module weight:
1.6kg
Brightness:
≥1000cd/m2
Life span:
100000hours
Packaging & Delivery
Packaging Details
Wooden case for fixed usage
Flight case for rental usageDelivery Time
10-15 working days after received deposit
Specifications of P6mm indoor
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH6)
Specifications of the module | |||
Technical parameters | UNIT | Parameters values | |
Pixel pitch | MM | 6 | |
Panel size | MM | L192*H192*T13 | |
Physical density | /M2 | 27777 | |
Pixel configuration | R/G/B | 1,1,1 | |
Driving method | Constant current 1/16scan | ||
LED Encapsulation | SMD | 3528 | |
Display resolution | DOTS | 32X32=2048 | |
Module weight | KG | 1.6 | |
Module working voltage | VDC | 5 | |
Module consumption | W | 30 | |
Specifications of LED cabinet | |||
Viewing angle | Deg. | 140° | |
Option distance | M | 6-60 | |
Driving device | 16016/5020 | ||
Every square metre module | PCS | 13.56 | |
Maximum power | W/ M2 | 600 | |
Frame Frequency | HZ/S | ≥60 | |
Refresh frequency | HZ/S | ≥600 | |
Equilibrium brightness | CD/ M2 | ≥1500 | |
Working environment temperature | 0C | -10~60 | |
Working environmenthumidity | RH | 10%~70% | |
Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% | |
Colour temperature | 8500K-11500K | ||
Gray scale/color | ≥16.7M color | ||
Input signal | RF\ S-Video\ RGB etc | ||
Control system | PCTV nonlinearity card,DVI display card,Linsn control system | ||
Mean free error time | HOURS | >5000 | |
Life | HOURS | 100000 | |
Lamp failure frequency | <0.0001 | ||
Antijam | IEC801 | ||
Safety | GB4793 | ||
Resist the electricity | 1500V last 1min No breakdown | ||
Steel box weight | KG/ M2 | 40(standard steel box) | |
Earth leakage current | mA | ||
IP rating | The back IP40,The front IP50 | ||
Steel box size | mm | L768Xh768x80 | |
Module

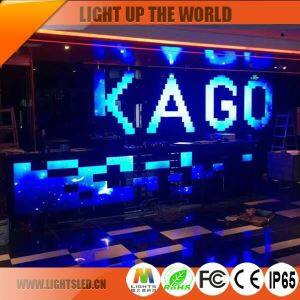

Project case
Certificate:
