P2 LED Screen
Hi-tech Narrow Pixel Pitch LED Display
High Refresh Rate
Low Brightness And High Gray-scale
Vivid Video Quality
Seamless Splicing

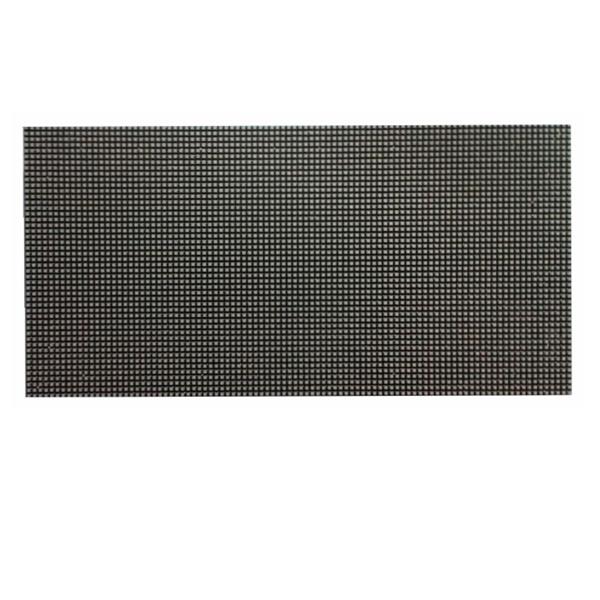

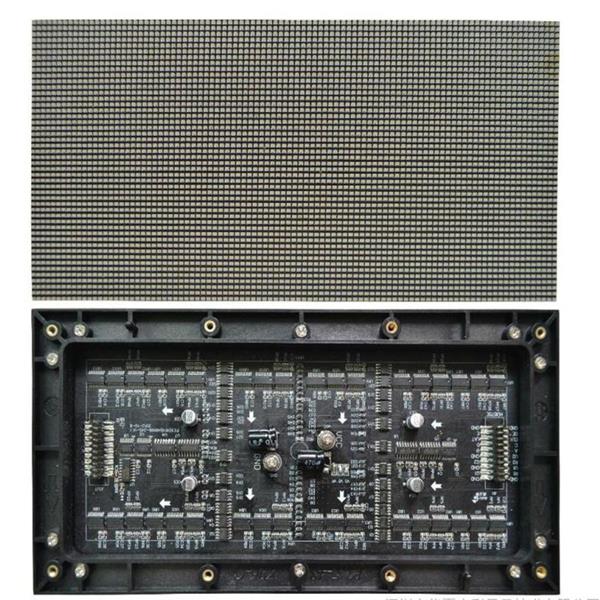

LED Module
Parameters
| Pixel pitch | P2 | ||
| Module Parameters | Pixel pitch | 2 mm | |
| Pixel Density | 250000 pixels/m2 | ||
| LED Shape | SMD 3in1 | ||
| LED Configuration | 1R1G1B | ||
| Module Resolution | 128*64 pixel | ||
| Module Size | 256*128 mm | ||
| Drive Method | 1/32 | ||
| Cabinet Parameters | Cabinet Resoltuion | 256*256 | |
| Cabinet Size | 512*512 mm | ||
| Display Parameters | Optical | Brightness | ≥1000 cd/m2 |
| Viewing angle | H/V 160/160 | ||
| Best Viewing Distance | 2-15 m | ||
| Display Color | 16.7 million | ||
| Grey Scale | 10bits/1024levels | ||
| Power | Max power consumption | 750 W/m2 | |
| Ave power consumption | 500 W/m2 | ||
| Working Voltage | 220V / 110V | ||
| Control system | Frame Frequency | 60--85 HZ | |
| Refresh Rate | 4000 HZ | ||
| Data Transmission | CAT 5/ Optic Fiber | ||
| Image Source | S-Video, PAL/ NTSC | ||
| Controlling system | linsn, Nova | ||
| Format | Video Compatibility DVI, VGA, composite | ||
| Reliability | Working Temperature | -20~65 ℃ | |
| Working Humidity | 10-95% RH | ||
| Life Span | 100,000 Hours | ||
| MTBF (Ave No Faliure Time) | 5000 Hours | ||
| Pixel failing Rate | 0.01% | ||

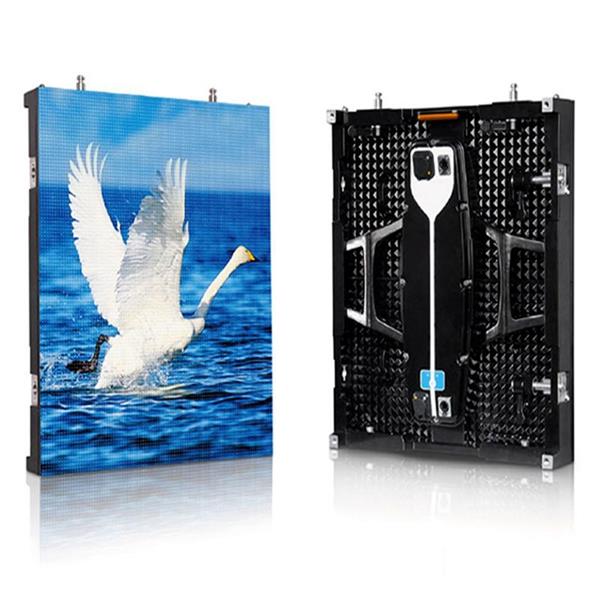

Cabinet
Product Features
1) High intensity and can be adjusted, can meet the request of the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect.
4) Big viewing angle to 120-140 degree at horizontal line, 120-140 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.

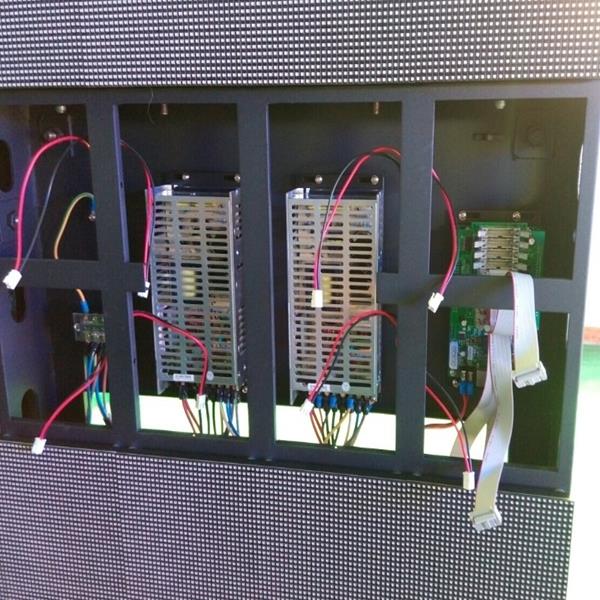

Maintenance
Customized after-sale service
With many years LED production experience, we are able to solve all problems related to led screen module, SMD led module, dip module, indoor/ outdoor fixed led display, led video screen rental, LED display installation, display testing, even the circuit.Immediate 24*7 responce . If there are unusual problem, the cross function team from technical, production and service will operating in 12 hours to analysis and resolve.

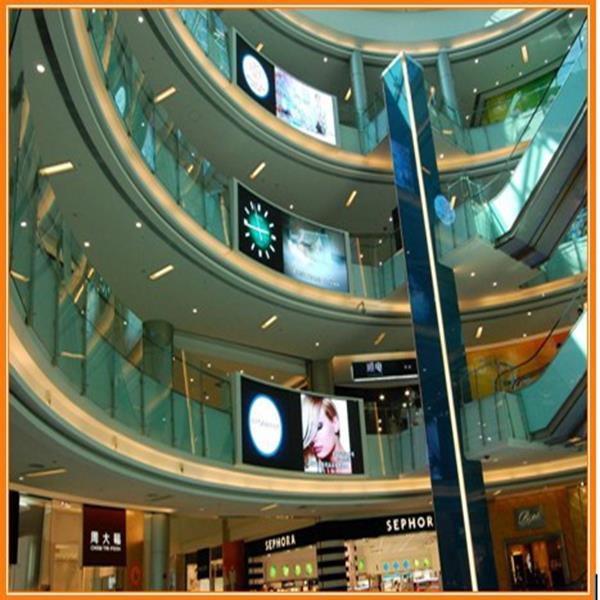

Application
