Product Parameter:
Item | P5 Indoor Full Color LED Display |
Model Number | P5 |
Pixel Pitch | 5mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3528 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 64*32 |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 280-500 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | 640*640 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | ≤1200HZ |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Module:
Cabinet:

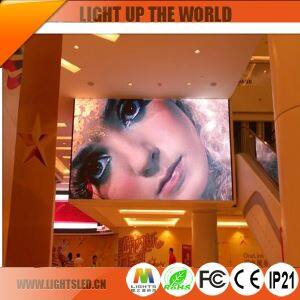

Application:
Features:
1) High intensity and can be adjusted, can meet the request of the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect.
