Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Model Number:p4
Usage:Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:4mm
Screen Dimension:
Customized Size
High Brightness
Warranty:
3 Years
Certificate:
CE ROHS FCC IP43
Power Supply:
Meanwell
Module size:256*128mm
Cabinet size:
512*512mm
Packaging & Delivery
Wooden Case or Flight Case at customers' request
Delivery Time:10Days~25Days After Payment
High refresh rate, stable performance.
Refresh rate is more than 600 hz, high refresh rate is not the splash screen, after high temperature 50 ℃, low temperature 20 ℃ white during aging test, still work normally.
High brightness
The color is clear, perfect rendering every detail of the picture.
Numbers | Technical indexes | Specification |
1 | Pixel pitch | 4mm |
2 | Module size | 256mm×128mm |
3 | Module resolution | 64×32 |
4 | Module density | 62500dots/sqm |
5 | Pixel configuration | Full color |
| 6 | Best viewing distance | more than 4m |
7 | Viewing angle | 120° |
| 8 | Maximum power consumption | ≤600W |
9 | Brightness | ≥1500cd/m2 |
10 | Gray scale | 14bits |
| 11 | Control method | Synchronization or Asynchronization |
12 | Driving method | 16scanning |
| 13 | Refresh frequency | ≥1200 Hz |
14 | Working voltage | AC220V/110V±10% |
15 | IP grade | IP43 |
| 16 | life span | more than 100,000 hours |
Stable and reliable
The constant current drive method can reduce the light failure of LED display, which can make LED display more stable and reliable.
Intelligent heat dissipation, energy conservation and environmental protection
The module itself has the cooling function, which guarantees the life of LED display, low power consumption, and more energy saving and environmental protection.
Packing & Delivery
Packing
Delivery

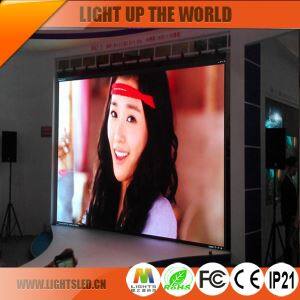

High Resolution Indoor P4 Full Color For Adversting Video Wall
