Applications
Applied in advertising billboards in Shopping malls, Sports Stadium, Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.
Producet Parameters

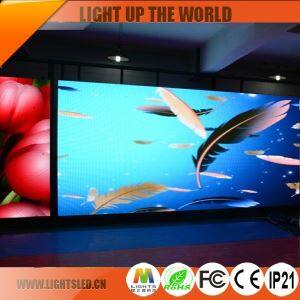

Item | P6 Indoor Full Color LED Display |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3528 |

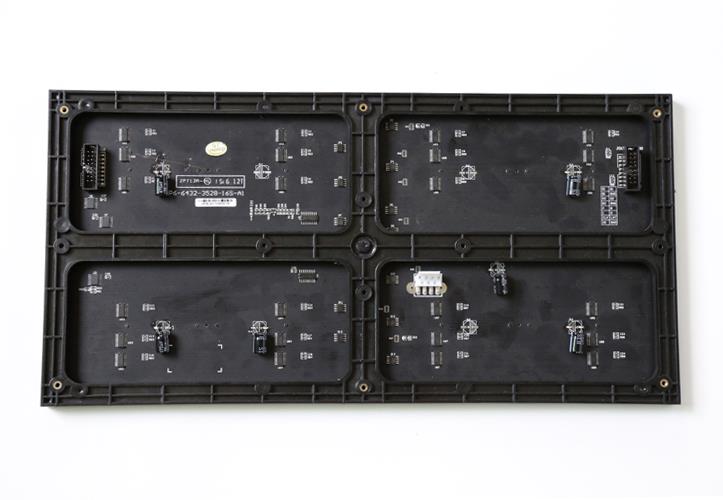

Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | 768*576 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is 300-600HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14 BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1. Accurate position of the locating dowel makes the surface between cabinets flat;
2. Made through CNC, Assembly accuracy 0.1mm, Seamless Assembly;
3. No granular spots and mosiac on the screen, High-degree of color coordinates;
4. Clearer and vivider piture, Seamless, No chromatic;
5. large viewing angle, Soft image, High resolution;
6. Multi-layer circuit PCB, Lower consumption, Fast Heat-emmiting, Longlife, High stability;
7. Easy to assemble and detach the cabinets;
8. Working Noise: Less than 40DB, Have no influence on the viewing effect;
9. SMD3535 led, Ultra-low decay, Weather resistance;
10. SMD full color led chip.
