LightS Single Color LED Display Series
P10 SINGLE BLUE
Features
1. P10 led module, black aluminum frame.
2. programmable led sign for dfferent languages of text and pictures.
3. Input voltage is AC 100V-240V(ddefaut); DC9-36V if used on vehicle.
4. Singal connection cable interface is USB. if you need other interface pls contact us we will provide for you.
5. Program can support all languages.
6. Package: including one pcs led display, one CD with control sofware and manual.
MODULE PICTURE
Pixel pitch(real):10mm
Module Size: 320*160mm
Pixel composition:1R
Pixel density:10000dots/ m2
screen luminance:≥2000cd/ m2
view angle:horizontal 120°-140°;vertical 90°
power supply:220V±15% 50Hz
gray scale: red
displaying mode:VGA640X480—VGA1600X1024
life-span:≥100，000 hours
communication distance:≤120m (Ethernet cable)/ 500m—20km(fiber)
relative temperature:—25℃～+60℃
relative humidity:10%—95%RH
control mode:Asynchronous control
signals inputing:VGA
operation system:Windows98/Me/2000/Xp
brightness adjustment:16 level automatic or manual

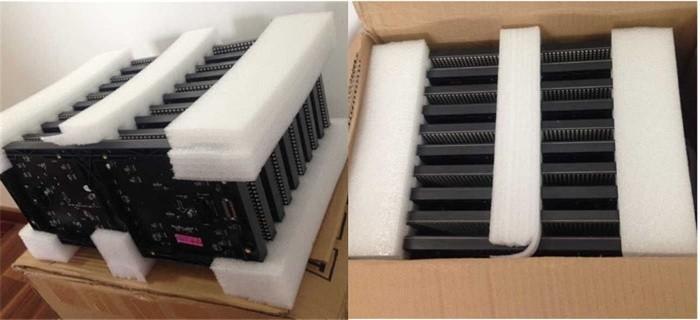

PACKAGE SHOWS
