P8 Outdoor LED Screen
Item | P8 Outdoor LED Screen |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots) | 15625 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3535 |

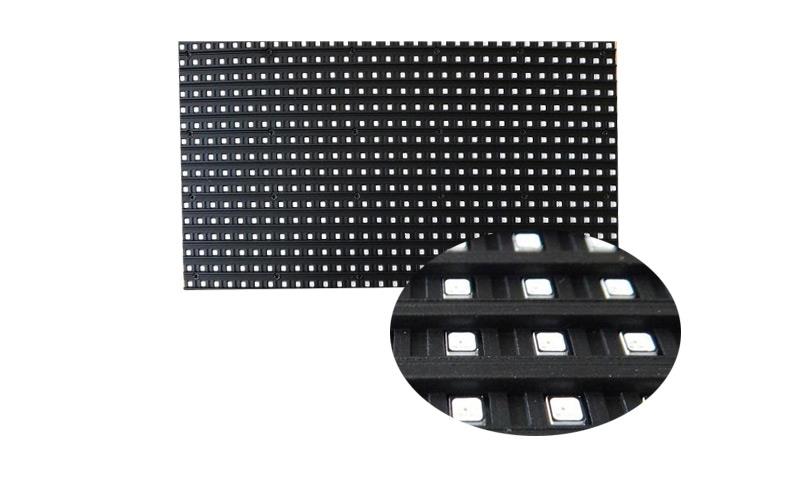

Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | >8 |
Brightness | >6300 |
Viewing Angle(degree) | <140 |
Average Power Consumption | 300-850 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | 1024*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140 |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |

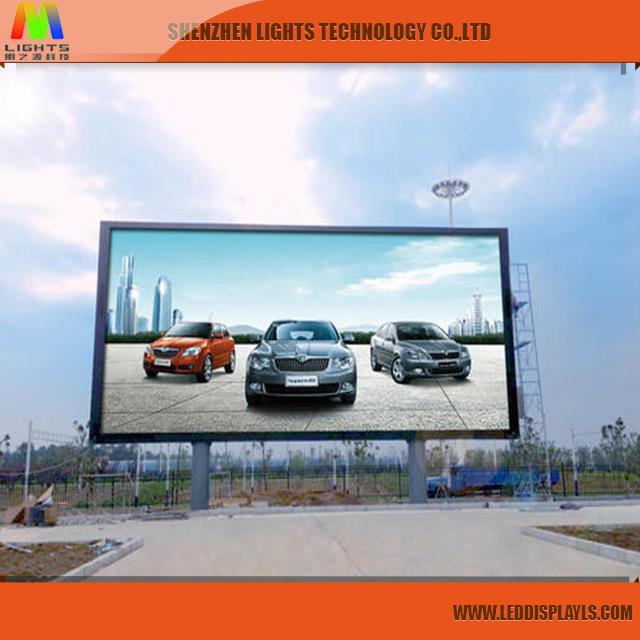

Product Show
Application
