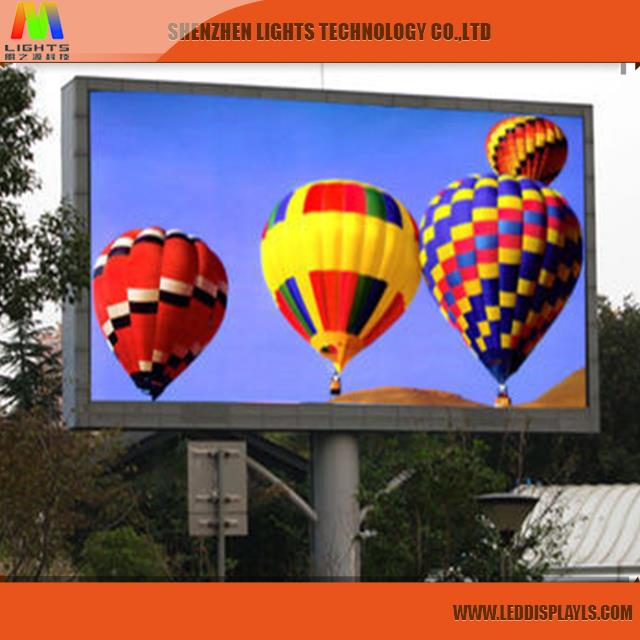

P8 Outdoor Led Display Price

P8 Outdoor Led Display Price

P8 Outdoor Led Display Price Product Description Affordable, Rugged And Durable, Multi-Material Selectivity, Easy Assembly And Disassembly, Protect The Environment And So on. Our System Uses LED Light Source Light, The Intensity Of Its Life And Light Are Very High. The Product Can Be Widely Used...
Send Inquiry
Description
Technical Parameters



P8 Outdoor Led Display Price



Product Description

Affordable, Rugged And Durable, Multi-Material Selectivity, Easy Assembly And Disassembly, Protect The Environment And So on.
Our System Uses LED Light Source Light, The Intensity Of Its Life And Light Are Very High.
The Product Can Be Widely Used In Indoor And Outdoor, Street, Next To Highways, Airports, Commercial Hall And So on.


Product Parameters

Item

P8 Outdoor Led Display Price

Model Number

P8

Pixel Pitch

8mm

Pixel Density(dots/m²)

15625

Pixel Configuration

3 IN 1

LED Type

SMD3535

Module size(mm)

256*128

Module Resolution(dots)

32*16

Min.Viewing Distance(m)

≥8

Brightness(cd/m²)

>6300

Viewing Angle(degree)

≤140°

Average Power Consumption(w/m²)

550-900

Scan Mode

1/8

Protection Level

IP65

Cabinet Size(mm)

1024*1024


Technical  Specifications

With Excellent Waterproof Performance, Safe And Reliable Power System
All Components Of The Product Can Be Processed According To Customer Requirements.
The Metal Structure Can Be Recycled Again Without Any Impact On The Environment.
Product Life Of Up To 1000000 Hours.
We Can Provide Additional Installation, Technical Guidance And Training Services.


LED display

Outdoor p8 led screen

LED full color display

It consists of a red LED chip, a green LED chip and a blue LED chip. The unit module contains a driver chip and an input buffer chip, which are connected to the LED display control. The system can display video, image and text information; this unit can be horizontal and vertical direction of any splicing, which spelled into different sizes of the display.

LED display module features:
1, the use of ultra-high brightness LED and high-quality plastic pieces
2, high-contrast hue can achieve a good display
3, light weight, easy to install, remove
4, can be single-point, single lamp maintenance, low cost
5, using constant current way to drive LED, light uniformity, low power consumption
6, the pixel pitch is 8mm, a total of 32 * 16 pixels, each pixel consists of 1R1G1B

Product Application

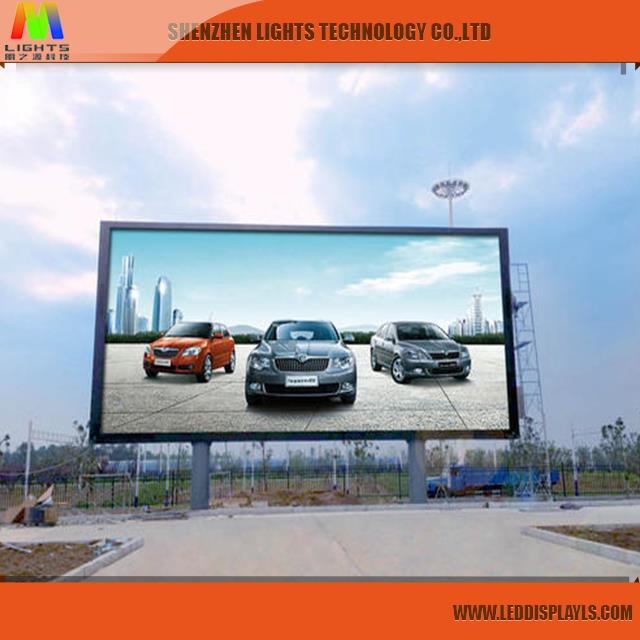

Outdoor P8 led screen.jpg
