P3.91 Outdoor High Brightness backstage led screen
>>>Specification<<<
Model | P3.91 |
Pixel pitch | 3.91 |
Pixel resolution | 65410 |
Pixel configuration | High Brightness SMD2525 3-in-1 packaged |
Viewing angles | 120° at 50% brightness |
Weight | 15 |
Brightness | 5,500 |
Contrast ratio | 1,000:1 |
Color temperature | 6,500 |
Color processing | 12 |
Colors | 439.8 billion |
Grayscale | 16,384 |
Best viewing distance | 4 - 40 |
Refresh rate | ≥1,000 |
Control system | LINSN |
Life time | 75,000 to 50% brightness down |
Power consumption | 700 / 350 |
(maximum/average) | 175 / 87.5 |
Working voltage | AC220V or AC110V / 50-60 Hz |

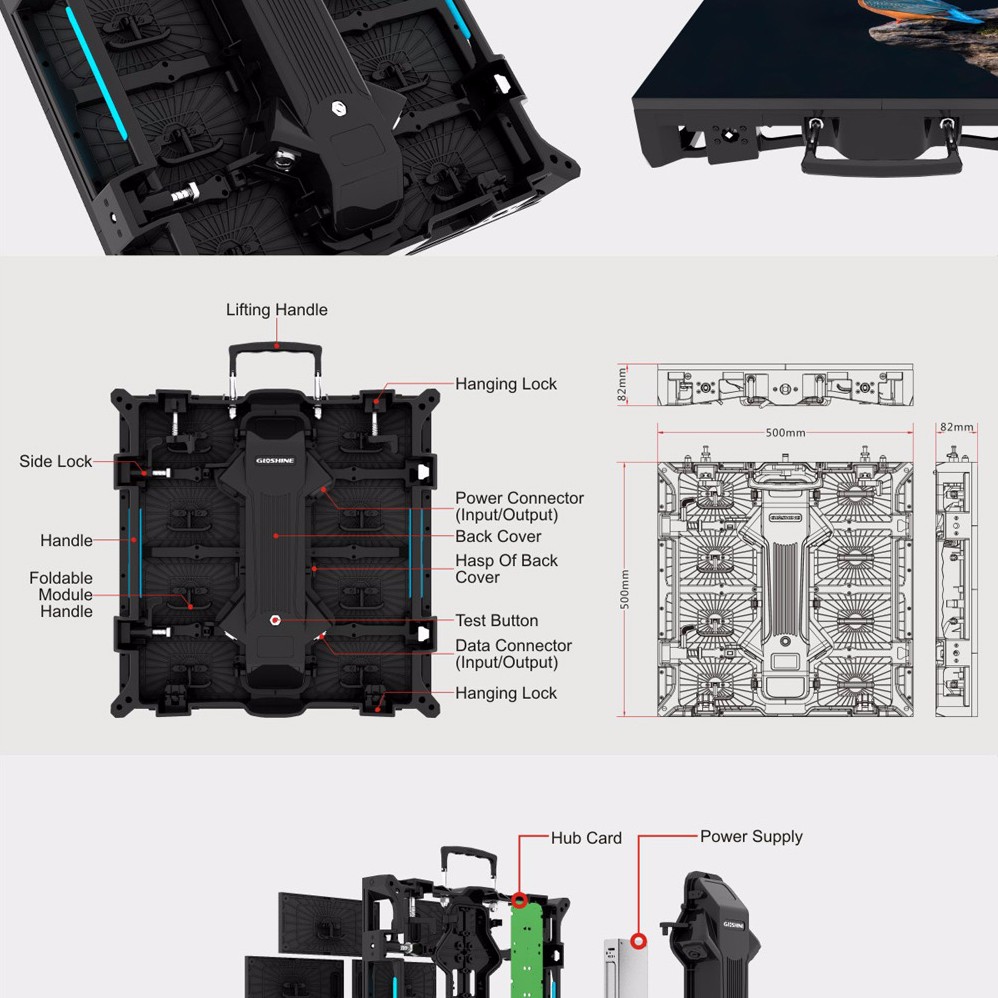

Cabinet dimension | 500 x 500 x 77 |
Aspect ratio | 1:1 |
Cabinet material | die-casted aluminum |
Protection rate | front: IP65, back: IP54 |
Working temperature | -20 to +60 |
Working humidity | 10 to 95% |
Image source with LED video processor | HDMI, CVBS, YC, YUV, RGB DVI, SDI/HDSDI |
Image source without video processor | DVI |
Maximum transmitting distance | <100 with network cable <2,000 with optical fiber cable |
Cabinet interfaces | 2 signal ports, 2 power ports |
Maximum per power entry | 220V power input: 18 110V power input: 9 |

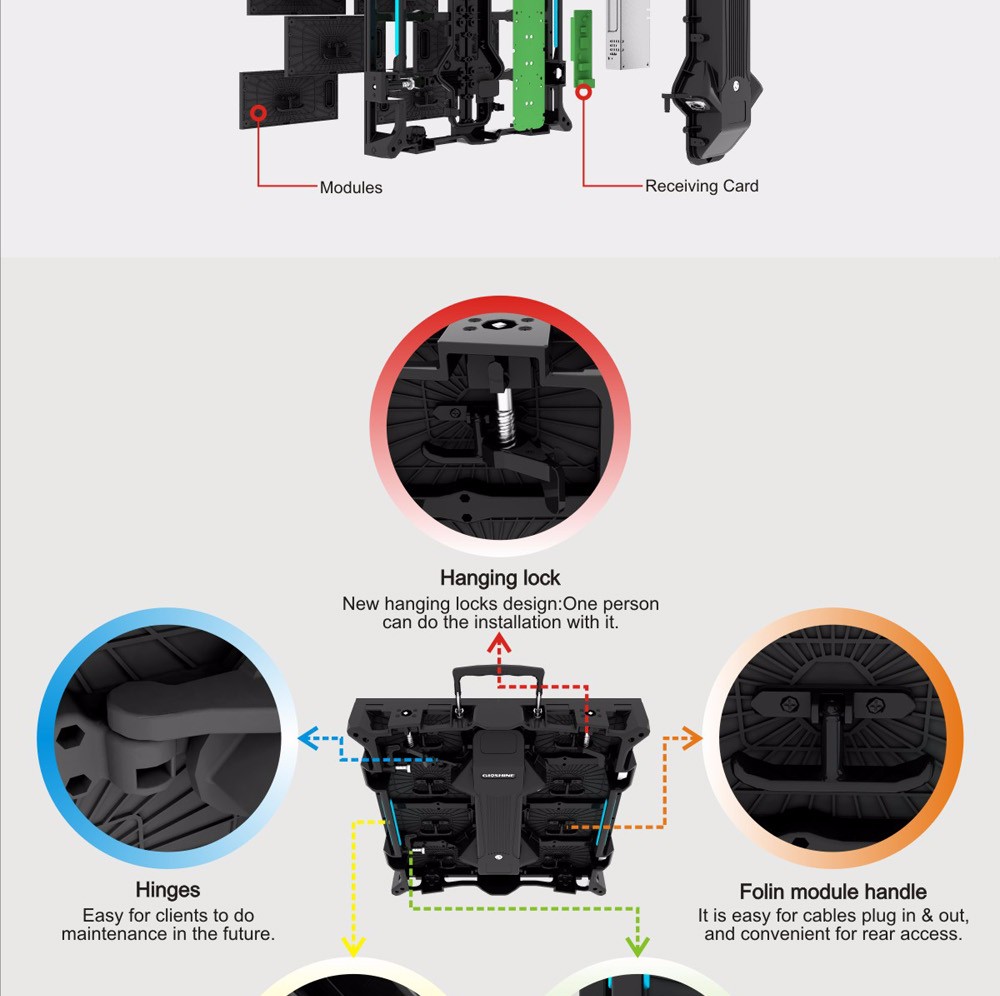

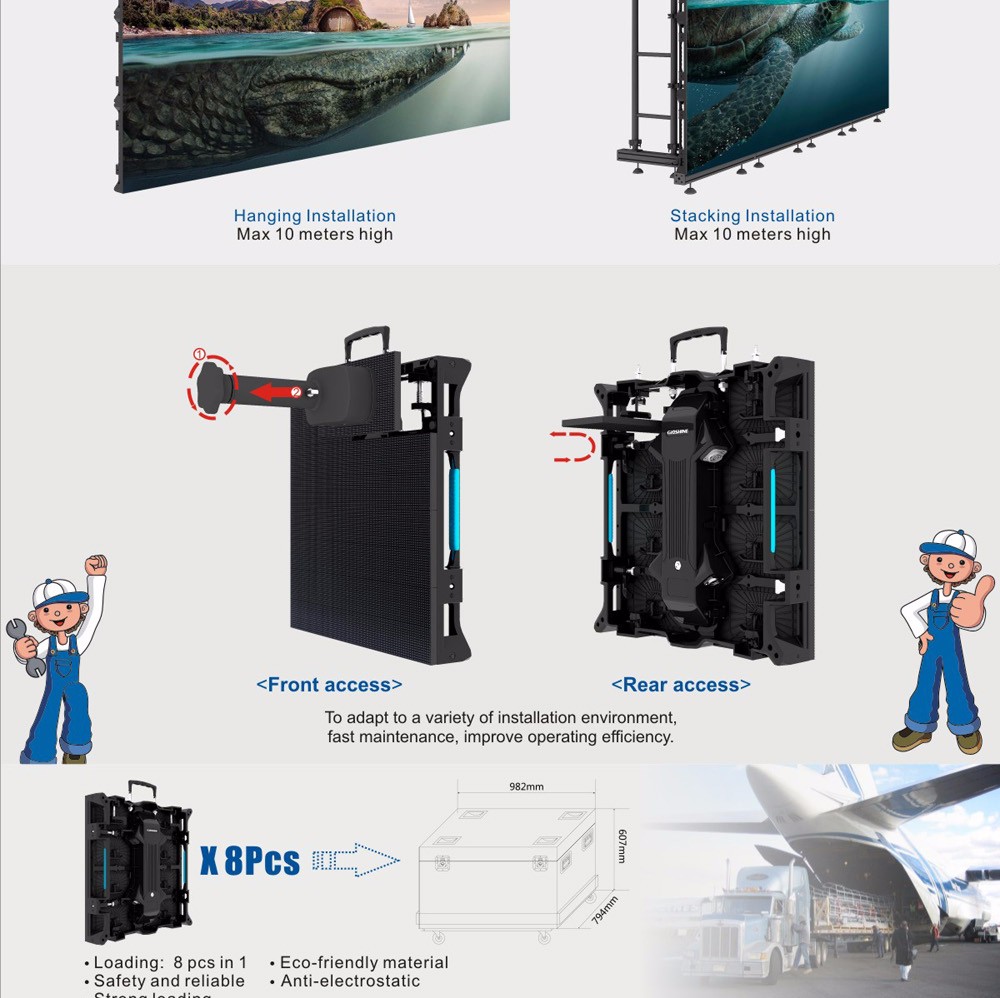

Maintenance | back |
>>>Features<<<
Super high resolution SMD technology for outdoor LED rental displays
Excellent color reproduction, ultimate image quality, high contrast.

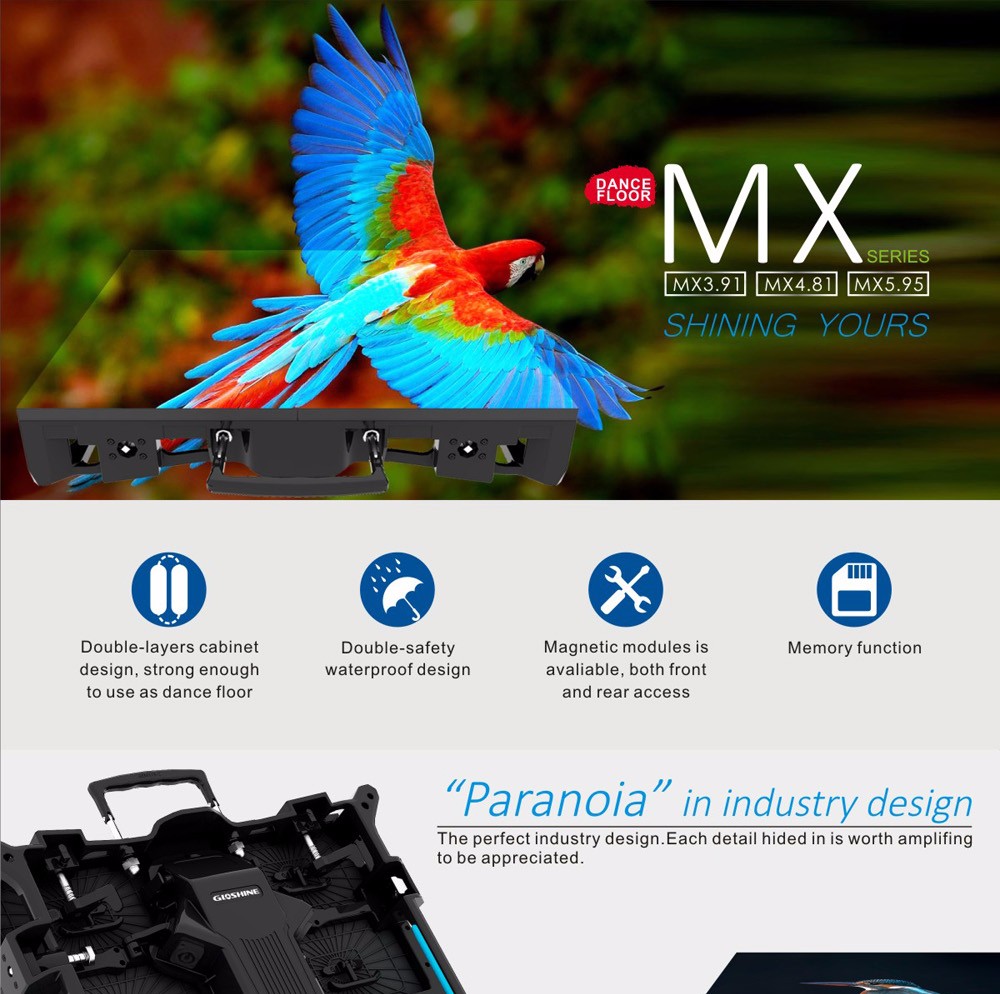

Modularity & fanless design, Lightweight and slim die casting aluminum casing
Excellent grey scale, high contrast.

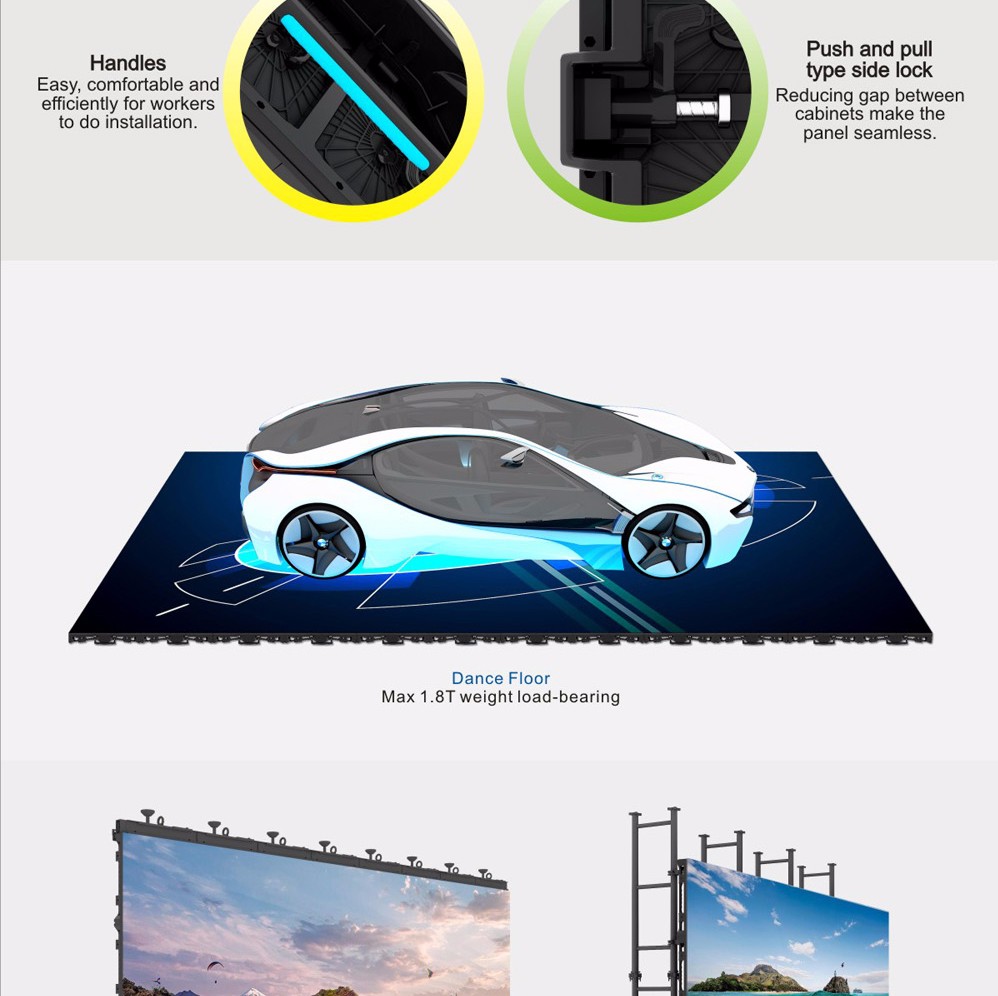

Fast installation: Quick install locks with three steps, push-twist-fasten.
Seamless: high-precision CNC processing cabinet with precision +/- 0.05mm;

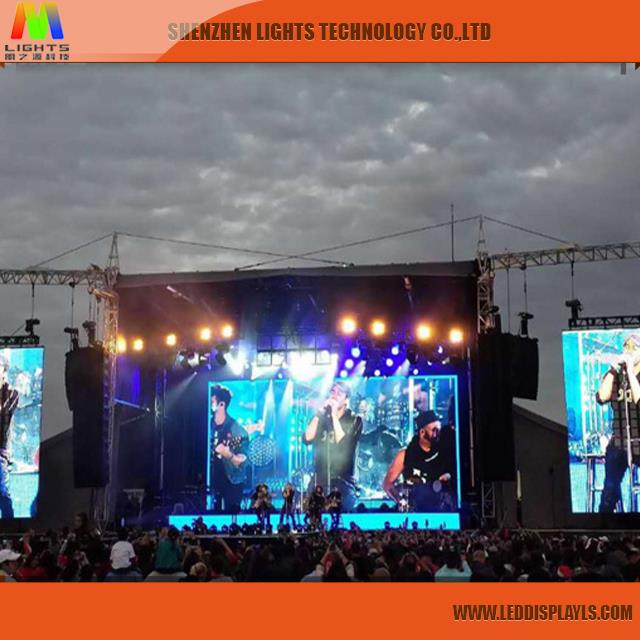

Perfectly suited for both indoor and outdoor cross-rental/touring applications.
>>>Details<<<
