Product Features

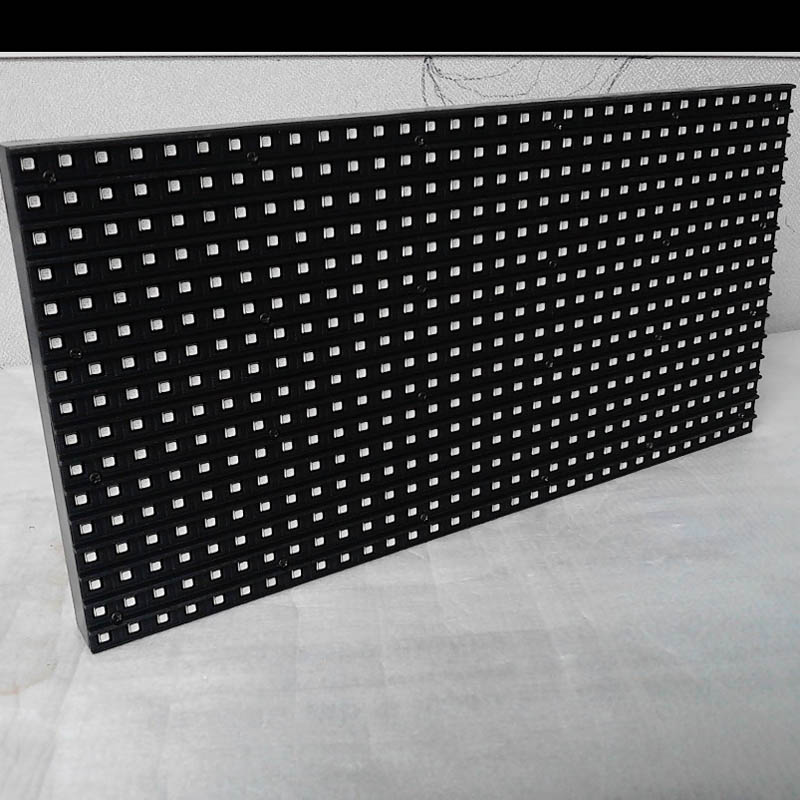

1) Outdoor P8 SMD LED display is suitable for both indoor and outdoor, the cost performance is better than DIP LED display.
2) P8 outdoor SMD LED displays is moisture-proof, anti-static and dust free, it also gets a unique waterproof processing.
3) Bigger viewing angle by 3IN1 SMD LED display, better color mixture and gorgeous image quality. Quick and easy assembly and removing system can greatly save the loading time.
4) Easy Maintenance : designed with easy assembly and installation
5) Wide viewing angle : Patented design module mask with 120°/ 120° viewing perfect angle and good flatness.
6) Environment friendly: 20% power saving to protect environment and saving your cost
7) Seamless Assembly:Processed by electric-mechanical machining with the accuracy to 0.1mm.
Item | Outdoor Full Color LED Display |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | RGB |
LED Type | SMD3535 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/4 |
Protection Level | IP65 |
Cabinet Size(mm) | 1280*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | 14BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters, max transmission distance is 130 meters. |
