1. The most common outdoor single two-color door head screen. The power is small, the heat dissipation demand is not high, the screen body width ratio is very big. The surface of the screen is very small. In order to facilitate maintenance, more than a number of hook-and-wall installation. The screen body can be lifted from the lower part.
2. Station, hospital Information Guide screen, the installation of the environment is more than the channel, such as the location of people, need to be installed along the front of the pedestrian direction, installation support points lack. So the use of the top hoisting way more. Avoid obstructing the flow of people. Hoisting screen load-bearing more use of cable, the display weight can not be too large.

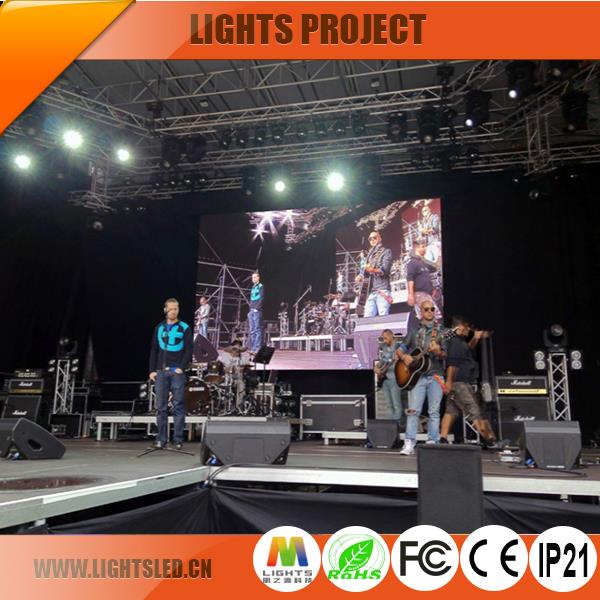

3. The stage background screen, the stage background screen uses the indoor table pastes the series more. Mixed color good, brightness requirements are not high. The simple stage screen is embedded in the stage background. This type of installation of the structure of the use of square tube welding, the front in accordance with the product fixed magnet position to do a fixed back, the back of the switch power supply fixed back. Because the entire seal in the wall or decorate the structure inside, the heat dissipation is poor, need to import central air-conditioning ventilation pipe to help dissipate heat.
The complex stage screen consists of a main screen and a multi side screen, which requires that the main screen and the secondary screen can be combined and separated. This kind of display relies on the lower structure load-bearing, is situated in the stage surface the guide rail to carry on the combination and separates. This type of structure of the overall center of gravity to rely on, in order to ensure the stability of the screen in the movement of the rail, cable and power supply cables need to tailor the activities of the class. To ensure reliability.
