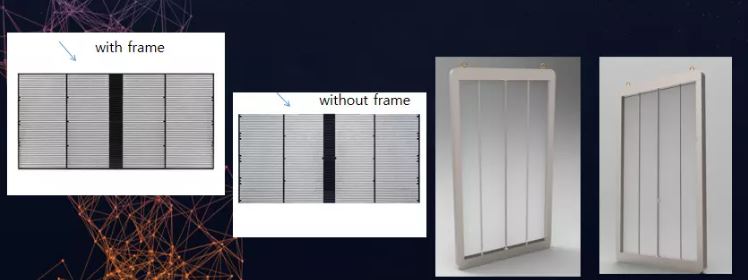

P7.81 Indoor Transparent Led Glass Wall Advertising Screen
Product Parameters
Item | P7.81 Indoor Transparent Led Glass Wall Advertising Screen |
Model Number | p7.81 |
Pixel Pitch | 7.81mm |
Pixel Density(dots/m²) | 8192 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3535 |
Module size(mm) | 250*250 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥7.81 |
Brightness(cd/m²) | >3800 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 550~850W |
Scan Mode | 1/8S |
Protection Level | IP65 |
Cabinet Size(mm) | 500*100 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters |
FAQ
Q1: How to help client choose suitable led display?
A1: (1) application palce (2)viewing distance
(3)display brightness (4)budget and cost control, obviously its our first concern for we both
Q2: What about your technical support of led display?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required for led display installation & maintanence
Q3: What's the control system of led display?
A3: For led display of synchronization control: Nova, Linsn or Mooncell control system.
For led display of asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment of led display?
A5: Our payment method is T/T 30% as deposit, balance before delivery.
Our services
1.We can provide customers a comprehensive solution delivery of series-related products
2.We can provide customers high quality products
3.We can provide custom-made service.
4.We can provide customers one year free warranty,and support renewals extended
5.We can provide customers the free installation guidance and technical support
Product Description
Function and Technology Character:
1. Support multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on
2. The screen can get singal of camera, video, VCD, DVD, LD, TV and so on.
3. Brightness, contrast, saturation can be adjusted automatically by itself and manual.
4. Clear picture without flicker and distortion.
5. Show everything with your PC synchronously.
6. Super correcting technology for distortion.
7. One interface for sound signal and two ports for video signal at least.
8. Connected and controlled by PC via Lan and remote control.
9. Multiform language are available,such as English, French, Germany, Spanish, Russian and so on
