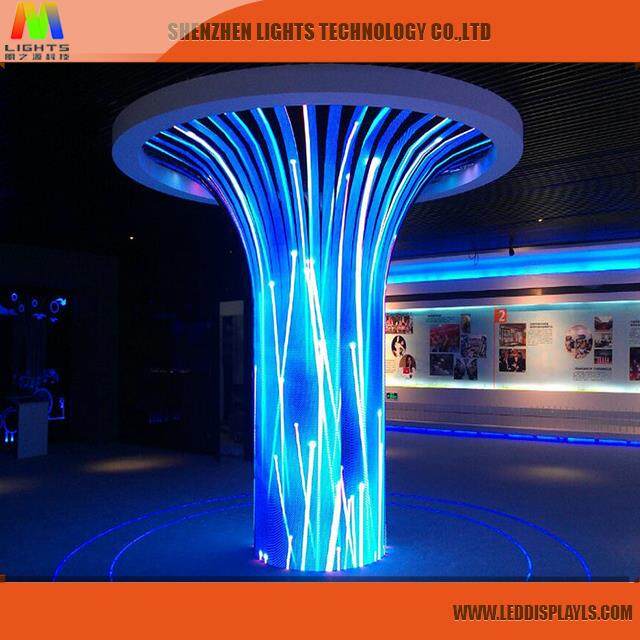

P3 Curved Led Display Flexible Matrix Module
Pixel Pitch | 3mm |
Pixel Density(dots/sqm) | 111111 |
Module Size(mm) | 192*192 |
Module Resolution(dots) | 64*64 |
LED Type | SMD2121(3 IN 1) |
Brightness( cd/sqm) | >1200 |
Scan Mode | 1/32scan |
Cabinet Size(mm) | Customized Size |
Average Power Consumption(W) | 350-600w |
Voltage | AC220v/50Hz Ac110v/60Hz |
Protection Level | IP43 |
Lifespan | 100000 Hours |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1920HZ(recommended) |
Color | 64g color( on the condition of 4096 gray scale) |
Horizontal/Vertical View Angle(degree) | 120° |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Gray Scale | 14 BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair (UTP) net line transmission distance is 100 meters, max transmission distance 130 meters |
Q1.Can I have a sample order for led display product?
A:Yes, we welcome sample order to test and check quality. Both for LED module and whole screen.
Q2.What about the lead time?
A: Order less than 100 square meter Led flexible module time take 15 working days.
Q3.Do you have any MOQ limit for led display order?
A:Low MOQ, 1 square meter or a module checking is available.
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW term, but we can help you order and arrange shipping agent. It usually take 30 days on by sea and a few days for customer clearance. 6-7days by Air,4-5days by express.
Q5.How to proceed an order for led display?
A: First, let us know your requirements or applications.
Then, we quote according to your requirements or applications.
Third, customer confirms the design document and places deposit for formal order.
Last, we arrange the production.
Q6.Is it OK to print my LOGO on the led display product?
A:Yes, and please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Do you offer guarantee for the products?
A:Yes, we offer 2year warranty to our product.
