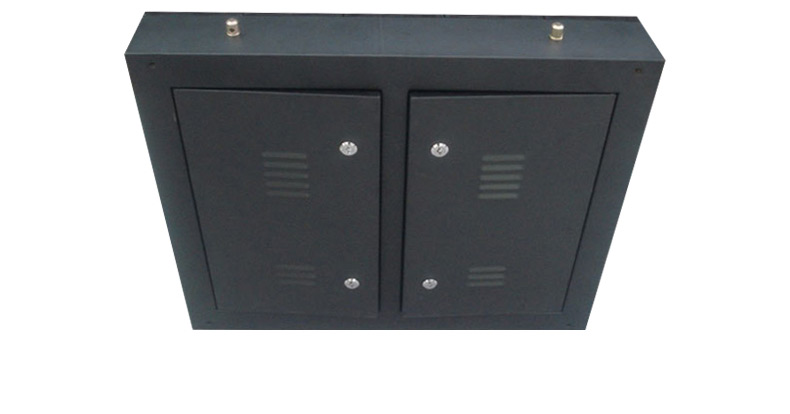

P10 DIP Football LED Stadium LED Boards for Sale

Item:Outdoor Sports P10 led display
Model Number: P10
Pixel Pitch: 10mm
Pixel Density(dots/m²): 10000
Pixel Configuration: RGB
LED Type: DIP346
Module size(mm): 320*160
Module Resolution(dots): 32*16
Min.Viewing Distance(m): ≥10
Brightness(cd/m²): ≥7000
Viewing Angle(degree): ≤120°
Average Power Consumption(w/m²): 240-480
Scan Mode: 1/4
Protection Level: IP65

Product Details



Item

Outdoor Sports P10 led display

Model Number

P10

Pixel Pitch

10mm

Pixel Density(dots/m²)

10000

Pixel Configuration

RGB

LED Type

DIP346

Module size(mm)

320*160

Module Resolution(dots)

32*16

Min.Viewing Distance(m)

≥10

Brightness(cd/m²)

≥7000

Viewing Angle(degree)

≤120°

Average Power Consumption(w/m²)

240-480

Scan Mode

1/4

Protection Level

IP65

Cabinet Size(mm)

Customized

Color Temperature

The brightness of R.G.B.is adjustable according to software 100level:Color temperature is adjustable in terms of detailed requirements

Working temperature

-40°C~80°C      Life Span : 100,000hours

Input Voltage

AC220 V/50HZ or AC 110V/60HZ

Control Type

Asynchronization (3G/ WiFi /USB )/Synchronization

Refresh Rate

LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)

Color

64g color(on the condition of 4096 gray scale)

Horizontal/Vertical viewing angle

<120°

Product Features

led mobile truck led display,truck led screen,no power truck display widely use for advertising campaigns,outdoor led billboard,concert and sport live,high brightness with high clarity






Important Knowledge of LED Display


1. How about the warranty ?

1-3 years warranty.


2. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, etc. You can choose the one which is the most convenient or

cost effective for you.


3. What kind of display we provide?

We have indoor/outdoor/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display

/stadium LED Display for you choose.


4. What about the lead time for order?

Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 7 days


5. What is LED display of the IP protection grade?

IP protection grade is composed of two digital, the first digital representation from the dust of lamps and lanterns,

 the level of the external things out, the second digit said moisture proof.




To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.


Shenzhen LightS Technology Co.,Ltd

Add: 5/F Building C, Fuzhen Industrial Park Changfeng Road, Changzhen Village, Guangming Street Shenzhen, China

Contactus: Weiqiang Jin

Tel: +86-0755-81707899

Fax: +86-0755-81707880

Mob/WhatsApp/Wechat: +86-13316879987

E-mail: ledsales168@lightsled.cn


If you're looking for the p10 dip football led stadium led boards for sale made in China, please rest assured to wholesale the screens with our professional manufacturers and suppliers in China. They are all made in our professional factory and are sold at low price.
